Pipe Shoes

Guiding Set FS

Application

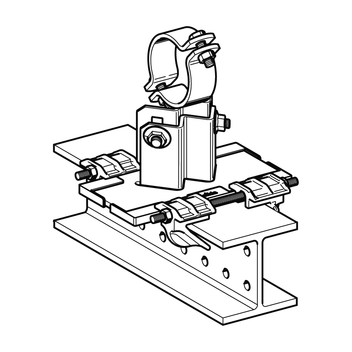

Element for completing Guided Pipe Shoes based on Sliding Pipe Shoes.
Max. beam flange width t ≤ 30 mm

Scope of delivery

Pre-assembled Guiding Set containing:
4 Clamping hooks
2 Grub screws
Lift-off preventions:

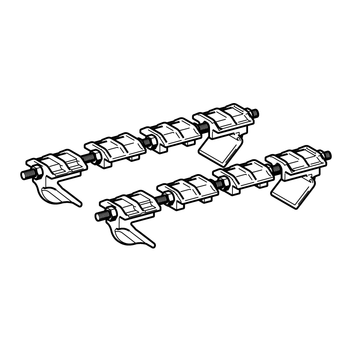

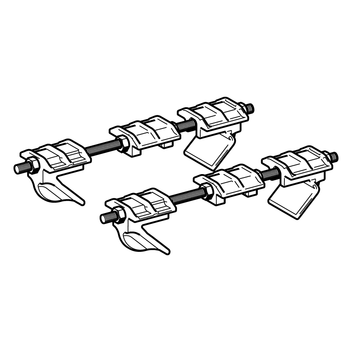

2 for FS 240/260
4 for FS 280/300
Hexagon nuts:
4 for FS 80/120, FS 140/160 and FS 180/220 each
8 for FS 240/260 and 12 for FS 280/300

Technical Data


Flange Thickness
[mm]
Beam Width
80 - 220 mm
Tightening Torque
[Nm]
Beam Width
221 - 300 mm
Tightening Torque
[Nm]
5 - 10 40 15
11 - 20 25 15
21 - 30 20 15

Material:
Metal sheets:
Steel, HCP
Grub screws, nuts:
Steel, HCP
Clamping hooks:
Cast iron, HCP

Approvals / Conformity

Pipe Shoe - external monitoring PDF | 626.1 KB

TypeFor flange width
[mm]
W
[kg]
Qty.
[set]
Part
number
FS 80/12080 - 1202.01 110350
FS 140/160121 - 1602.11 110351
FS 180/220161 - 2202.31 110352
FS 240/260221 - 2602.81 110353
FS 280/300261 - 3003.31 112887
