Pipe Shoes

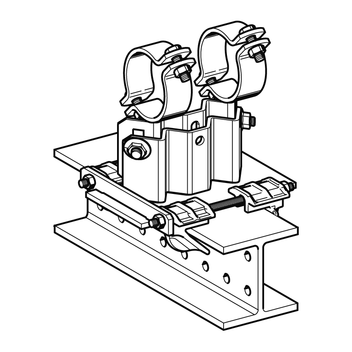

Fixed Point Set XS
Application
Modification of Sliding Pipe Shoes to Fixed Point Pipe Shoes. The slide plate has to be removed.
Max. beam flange width t ≤ 30 mm
Scope of delivery
Pre-assembled Fixed Point Set containing:
4 Clamping hooks
2 Grub screws
1 Cross bar
2 Lift-off preventions (XS 280/300)
Hexagon nuts:
4 for XS 80/120 and XS 140/160 each
6 for XS 180/220 and XS 240/260 each
10 for XS 280/300
Installation
Axial fixed point forces can only be attained by the professional use of anti-slip protections (e.g. cleats, stoppers). Those have to be planned during the design of the piping and are on the responsibilty of the piping manufacturer.
Technical Data
|
Flange Thickness [mm] | Beam Width 80 - 220 mm Tightening Torque [Nm] | Beam Width 221 - 300 mm Tightening Torque [Nm] |
|---|---|---|
| 5 - 10 | 40 | 15 |
| 11 - 20 | 25 | 15 |
| 21 - 30 | 20 | 15 |
| Material: | |
| Metal parts: | Steel, HCP |
| Grub screws, nuts: | Steel, HCP |
| Clamping hooks: | Cast iron, HCP |
Pipe Shoe - external monitoring PDF | 626.1 KB
Approvals / Conformity
