Pressix CC 27 - Assembly System

Channel Holder MOF 27

Application

To be used for installing crossbars between two Channels MS 27 or as base unit for projecting channels.

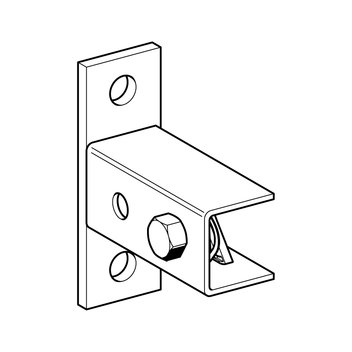

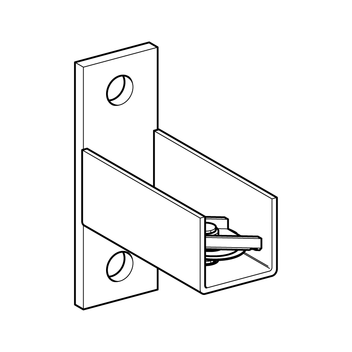

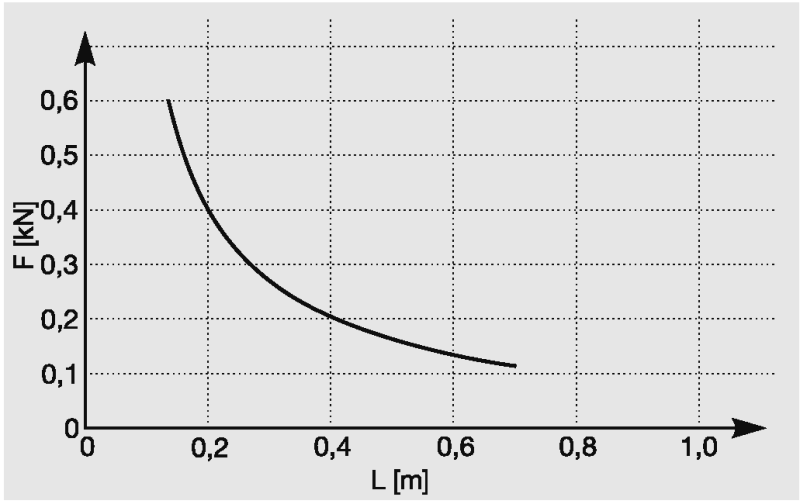

Note: When assembling version MH as cantilever, consider sufficient bracing of the channel. In case of tension load Fz at channel slot, screws must be displaced.

Scope of delivery

Completely assembled.

Installation

Position the channel into the U-profile. Click in the Speed Nut by pushing on the bolt head and tighten with 10 Nm.

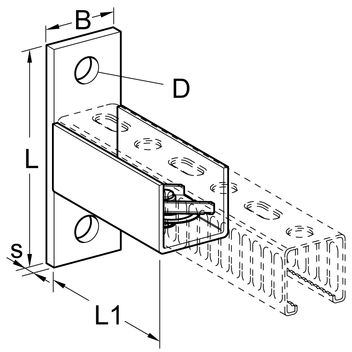

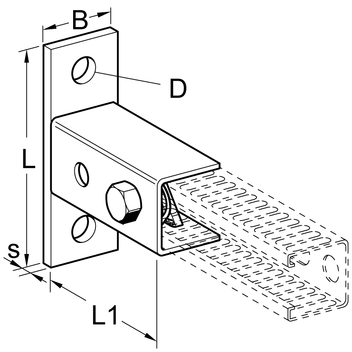

Technical Data

Adm. anchor loads to be respected


Max. adm. load for assembly on ceilings
in vertical direction: 0,8 kN

Material:
Steel, electro-galvanised
TypeWall plate
[mm]
D
[mm]
L1 [mm]W
[kg]
Quantity
[pack]
Part
number
MH 2788 x 30 x 59700.2025 198858
MV 2788 x 30 x 59700.2025 198865
