Pressix CC 27 - Assembly System
Beam Clamp SB 27
![](/sixcms/media.php/443/thumbnails/spannb%C3%BCgel.tif.46540.png)
![](/sixcms/media.php/443/thumbnails/1331_spannb%C3%BCgel_anw01.2697.tif.45827.png)

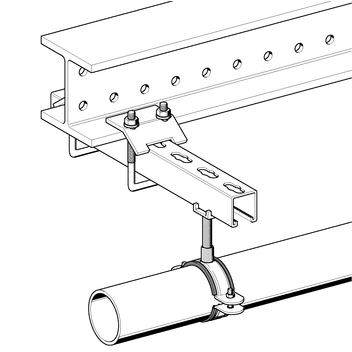

Application
Connecting element to fix Channel MS 27 to beam- and girder structures. Fixing to the channel regardless the orientation of channel opening or slotted side .
Scope of delivery
Completely pre-assembled with U-Bolt, Bracket and Flange Nut.
Installation
To be used in pairs only.
Tightening torque: 20 Nm
Length calculation = Beam/Girder flange thickness + min. 2 x 50 mm overhang.
Technical Data
Max. perm. load tension: | 2.0 kN per Beam Clamp |
Material: | Steel, electro-galvanised |
