Structural Elements 120
Beam Section TP 120
Application
Multifunctional beam section to create complex substructures and 3D units for a wide range of applications.
The beam section is suitable for a wide variety of applications with demanding load situations, e.g. with large spans or heavily loaded frame constructions.
Technical Data

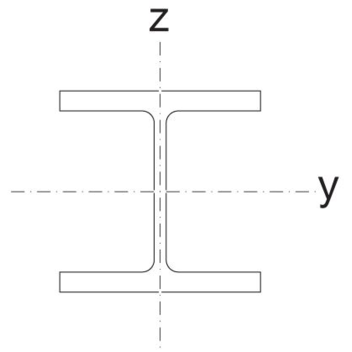

| Type | Section modulus [cm3 ] | Moment of inertia [cm4 ] | Radius of inertia [cm] | Torsional moment lt [cm4 ] | Cross section A [cm2 ] |
|---|---|---|---|---|---|
| TP 120 | Wy: 142.00 Wz: 52.80 | ly: 853.00 lz: 317.00 | iy: 5.13 iz: 3.13 | 13.66 | 32.3 |
Alle Werte berücksichtigen die Lochung.

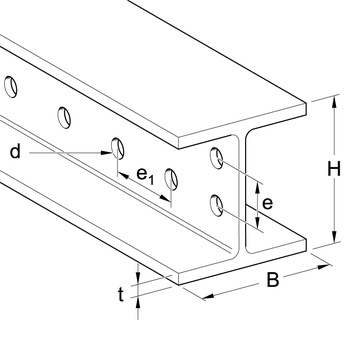

| Type | H [mm] | B [mm] | t [mm] | d [mm] | e [mm] | e1 [mm] |
|---|---|---|---|---|---|---|
| TP 120 | 120 | 120 | 11 | 13.5 | 50 | 50 |
| Material: | Steel, HCP |
