Structural Elements 100
Bracing Arm SKO 100

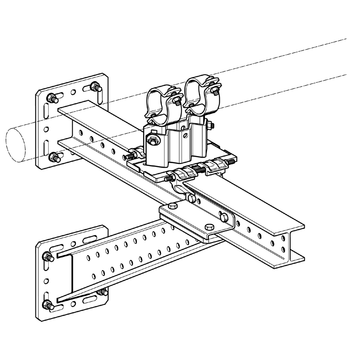

Application
Beam Bracket suitable as support for horizontal structures or as reinforcement of bearing constructions on site.
Installation
Depending on the situation, different options are recommended:
| a) | Fixing to the building structure using 4 heavy-duty anchors M12. |
| b) | Frictional construction to steel beams (flange width 80 - 120 mm) with Assembly Set 5P M12 S. |
| c) | Interlocking connection to Beam Bracket TKO 100 or 120 by means of Bracket Plates FV 100/120. |

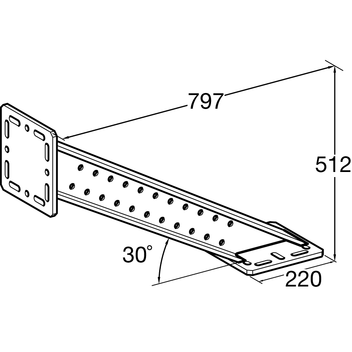

Technical Data
| Configuration: | Base plate welded to beam section 100 |
| Material: | Steel, HCP |
Approvals / Conformity
CE mark (Declaration of performance see www.sikla.com/service/downloads)
Declaration of performance Bracing Arm SKO PDF | 39.3 KB
