siFramo 100
U-Holder SB F 100
![](/sixcms/media.php/443/thumbnails/spannbuegel_F_80.50820.tif.50826.png)
![](/sixcms/media.php/443/thumbnails/SB_F_80_16_10299_AW.tif.66638.png)
![](/sixcms/media.php/443/thumbnails/SB_F_100_160_40_10298.tif.78458.png)
![](/sixcms/media.php/443/thumbnails/SB_F_100_160_40_10298_AW.tif.78466.png)
Application

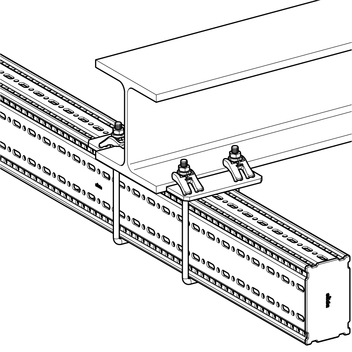

Pre-assembled component to clamp Beam Section F100 to the flange side of traditional steel sections.
Scope of delivery
Type SB F 100-16:
Holder with thread M10
Plate
2 Hexagon nuts M10
2 Washers

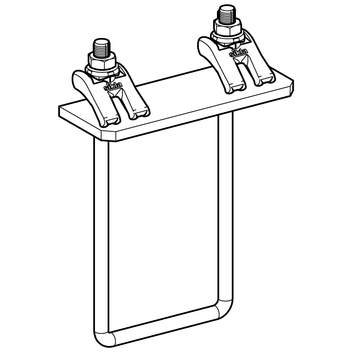

Type SB F 100-40 and 100/160-40
Holder with thread M12
Plate
2 Beam Clips SPA 5P AU
2 Hexagon nuts M12
Installation
U-Holder to be used in pairs.
Type 16 up to flange thickness 16 mm
Type 40 up to flange thickness 40 mm
Technical Data
Type | Thread | Tightening torque [Nm] | Fz per U-Holder [kN] | Fy [kN] | My [kNm] | Mz [kNm] |
---|---|---|---|---|---|---|
SB F 100-16 | M10 | 40 | 9,5 | * | * | * |
SB F 100-40 | M12 | 85 | 16 | * | * | * |
SB F 100/160-40 | M12 | 85 | 16 | * | * | * |
* Please compare the suitable type's dimensions by means of the Simotec user guideline to get the permissible lateral forces and torques.
Material: | Steel, FK 8.8, HCP |
