Pipe Shoes

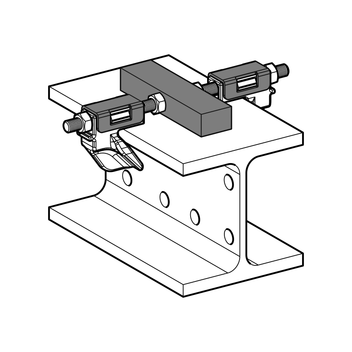

Slide Bearing Set LR - H 20
Application
Serves as a slide bearing base for pipes of DN 15 up to DN 300, to be fixed on steel beams with flange widths of 80mm up to 300mm and max. flange thickness of 20mm.
Scope of delivery
Preassembled Slide Bearing Set containing:
2 clamping hooks with slide bearers
1 slide bar
1 connecting rod M10 + nuts
Installation

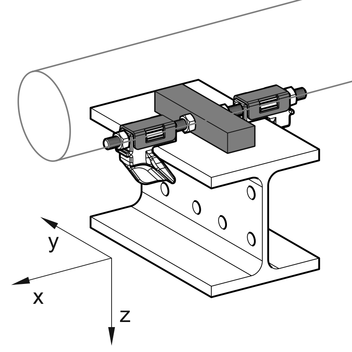

Position the preassembled clamping hooks onto the beam flange and tighten the nuts (to 10Nm). For beam widths < 100mm both nuts of the PA bearing blocks have to be removed. The pipe slides directly on the PA bearing blocks without lateral guidance. If larger lateral movement (> 40mm) along the Y axis is required or nominal pipe sizes > DN 100 are used, a broader PA bearing block of Type 100 is recommended.
Technical Data

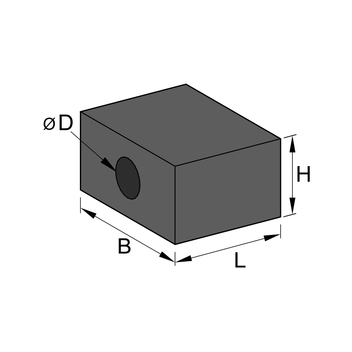

PA block:
| Type | H [mm] | L [mm] | B [mm] | D [mm] |
|---|---|---|---|---|
| 30 | 20 | 30 | 40 | 10.2 |
| 100 | 20 | 30 | 120 | 10.2 |
| Type | for flange width [mm] |
|---|---|
| 80/120 | 80 - 120 |
| 140/160 | 121 - 160 |
| 180/220 | 161 - 220 |
| 240/260 | 221 - 260 |
| 280/300 | 261 - 300 |
| Material: | |
| Clamping hooks: | Steel, HCP |
| Rod, nuts: | Steel, HCP |
| PA block: | Polyamide 6.0, 30 % glass fibre reinforced, black |
| Temperature range: | -20 to +130° C (at the PA block) |
* in stock
