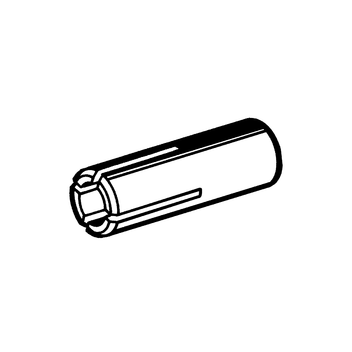

Drive Plug AN ss
Application
Hammerset Anchor for multiple attachment in cracked and single attachment in non-cracked concrete.
Suitable for fixing pipelines, channels, etc. meeting the respective approval requirements. To be used in structural parts under dry indoor conditions, as well as outdoor constructions (including industrial ambiance and coastal areas) or damp locations provided no special aggressive conditions are given.
- No special drill is required
- Setting Tool for Drive Plug is to be used as setting tool for distance-controlled forced expansion
- Suitable for put-before assembly
Installation
As setting tool the respective expansion cone for Drive plug is to be used.

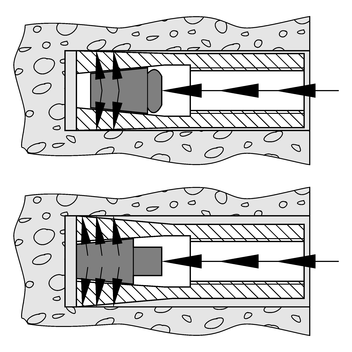

The "intelligent" expansion cone facilitates the assembly with drill hole tolerances in the bore hole diameters or with different concrete.
Due to the controlled expansion the needed edge and centre distances are considerably reduced.
Technical Data
General installation data:
| Anchor size | M8x30 | M8x40 | M10 | M12 | M16 |
|---|---|---|---|---|---|
| Nominal dia. of drill d0 = [mm] | 10 | 10 | 12 | 15 | 20 |
| Depth of drill hole h0 = [mm] | 30 | 40 | 40 | 50 | 65 |
| Tightening torque when anchoring Tinst = [Nm] | 8 | 8 | 15 | 35 | 60 |
| Pass-through hole in component to be joined df ≤ [mm] | 9 | 9 | 12 | 14 | 18 |
| Thread length Lth [mm] | 13 | 20 | 15 | 18 | 23 |
| Minimum screw-in depth Lsdmin [mm] | 9 | 9 | 11 | 13 | 18 |

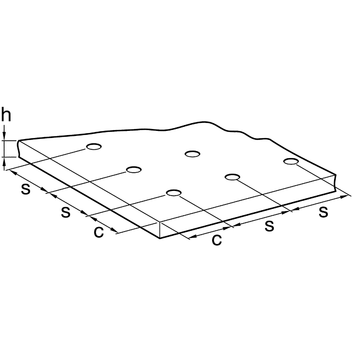

| Minimum thickness of component hmin [mm] | 100 | 100 | 130 | 140 | 160 |
| Min. centre distance smin [mm] | 60 | 80 | 100 | 120 | 150 |
| Min. edge distance cmin [mm] | 95 | 95 | 135 | 165 | 200 |
Extract from the approval specifications ETA-05/0117 cracked concrete / multiple fixation of non-bearing systems:
| Anchor size | M8x30 | M8x40 | M10 | M12 |
|---|---|---|---|---|
| Perm. load for single anchor C20/25-C50/60 [kN] | 1.7 | 2.0 | 2.0 | 2.4 |
| Perm. bending moment (A4-70) Mperm [Nm] | 11.9 | 11.9 | 23.8 | 42.1 |
| Characteristical centre distance scr [mm] | 180 | 210 | 170 | 170 |
| Characteristical edge distance ccr [mm] | 90 | 105 | 85 | 85 |
| Loads under fire exposure | | |||
| Perm. load R30 perm. F [kN] | 0.9 | 1.5 | 1.5 | 1.5 |
| Perm. load R60 perm. F [kN] | 0.9 | 1.5 | 1.5 | 1.5 |
| Perm. load R90 perm. F [kN] | 0.9 | 0.9 | 1.5 | 1.5 |
| Perm. load R120 perm. F [kN] | 0.5 | 0.5 | 1.0 | 1.2 |
Extract from approval specifications ETA-10/0257 non-cracked concrete:
| Anchor size | M8x30 | M8x40 | M10 | M12 | M16 |
|---|---|---|---|---|---|
| Perm. tensile load C20/25 [kN] | 3.8 | 5.2 | 5.9 | 8.3 | 12.3 |
| Lateral tension perm. V ≥ C20/25 [kN] | 4.9 | 4.9 | 6.1 | 11.5 | 19.2 |
| Bending moments perm. M [Nm] | 11.9 | 11.9 | 23.8 | 42.1 | 106.7 |
The values of the mentioned approvals are valid and could be seen in their latest issue under www.sikla.com/service/downloads.
| Material: | Stainless steel A4 (316) |
Approvals / Conformity
For the multiple fixation of non-structural systems Sikla Approval ETA-10/0258 (M8-M12), for anchorage in non-cracked concrete Sikla Approval ETA-10/0257 (M8-M16), Fire Protection Certification, VdS-conform, FM-Approval ≥ M10
ETA 10/0258 PDF | 3.9 MB ETA 10/0257 PDF | 2.4 MB FM - Sikla Anchors AN PDF | 260.1 KB
