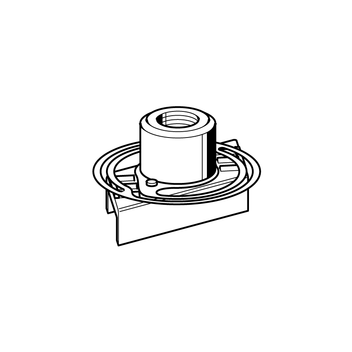

Adapter NT CC 41 DIN 3015 ss
Application
For efficient assembly of fastening clamps DIN 3015 (light and heavy series) to Channels MS 41. Particularly useable for assembly in vertical channels or positions difficult to access, this piece replaces the "3rd hand" and offers following further advantages:
- Compatible with all Sikla Channels MS 41, regardless of the channel's height.
- No getting stuck of screw heads while moving inside the channel.
- Plane fixation without projecting after tightening.
Scope of delivery
Channel nut, spring and thread connection pre-assembled.
Installation

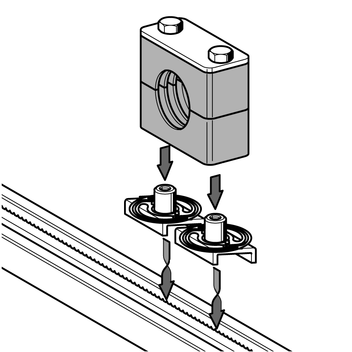

After inserting the Adapter NT CC 41 into the channel opening, slightly press on the thread connection. The piece automatically turns into position. Postion the fastening clamp and tighten the screws.
Neither assembly nor removal require a tool and are repeatable as much as is necessary.
Technical Data
| Material: | |
| Channel nut, thread connection: | Stainless steel (A4) |
| Spring washer: | Spring steel sheet, rustproof |
Pipe clamps DIN 3015-1 (series A, light model range)

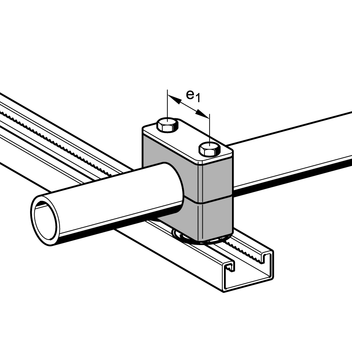

| Clamp size | Pipe outer-dia. [mm] | Connection with | e1 |
|---|---|---|---|
| 0 | 6 up to 12 | 1 x Adapter NT CC 41 M6 | |
| 1 | 6 up to 12 | 2 x Speed Nut NT CC 41 M6 | 20 1) |
| 2 | 12.7 up to 18 | 2 x Speed Nut NT CC 41 M6 | 26 1) |
| 3 | 19 up to 25 | 2 x Speed Nut NT CC 41 M6 | 33 1) |
| 4 | 26.9 up to 30 | 2 x Adapter NT CC 41 M6 | 40 |
| 5 | 32 up to 42 | 2 x Adapter NT CC 41 M6 | 52 |
| 6 | 44.5 up to 57 | 2 x Adapter NT CC 41 M6 | 66 |
| 7 | 57.2 up to 76.1 | 2 x Adapter NT CC 41 M6 | 94 |
| 8 | 88.9 up to 101.8 | 2 x Adapter NT CC 41 M6 | 120 |
Pipe clamps DIN 3015-2 (series C, heavy-load model range)
| Pipe size | Pipe outer dia. [mm] | Connection with | e1 |
|---|---|---|---|
| 1 | 6 up to 18 | 2 x Speed Nut NT CC 41 M10 | 33 1) |
| 2 | 19 up to 30 | 2 x Adapter NT CC 41 M10 | 45 |
| 3 | 30 up to 42 | 2 x Adapter NT CC 41 M10 | 60 |
| 4 | 38 up to 70 | 2 x Adapter NT CC 41 M12 | 90 |

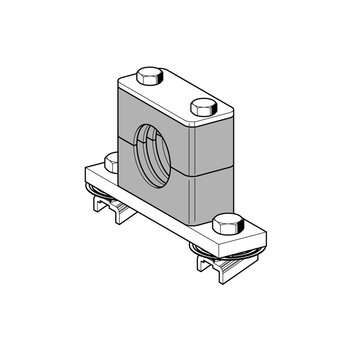

| 1) | For these hole distances the screwing plate of the clamp - see image 4 as well as each two Hexagon Bolts and Speed Nuts NT CC 41 are required. |
Pipe clamps DIN 3015-3 (series B, double model range)
| Pipe size | Pipe outer dia. [mm] | Connection with |
|---|---|---|
| 1 | 6 up to 12 | 1 x Adapter NT CC 41 M6 |
| 2 | 12.7 up to 18 | 1 x Adapter NT CC 41 M8 |
| 3 | 19 up to 25 | 1 x Adapter NT CC 41 M8 |
| 4 | 26.9 up to 30 | 1 x Adapter NT CC 41 M8 |
| 5 | 32 up to 42 | 1 x Adapter NT CC 41 M8 |
