Pressix CC 41 - Assembly System

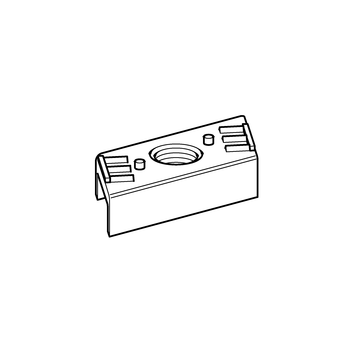

Channel Nut NT 41
Application
Channel Nuts NT 41 are suitable for Channels MS 41.
Technical Data
| M8 | M10 | |
| Tightening torque 8.8 1) [Nm] | 25 | 40 |
| 1) | Using lower steel classes, the value are to be reduced accordingly. |
| Channel thickness [mm] | M8 2) FZ ≤ [kN] | M10 2) FZ ≤ [kN] | M8 FQ ≤ [kN] | M10 2) FQ ≤ [kN] | |
|---|---|---|---|---|---|
| 1.5 | 3.0 | 3.0 | 1.8 | 2.9 | |
| 2.0 | 5.8 | 5.8 | 2.1 | 3.4 | |
| 2.5 | 5.8 | 5.8 | 2.6 | 4.1 | |
| 3.0 | 5.8 | 5.8 | 2.8 | 4.4 |
Note: The permissible load capacities of the channels are to be respected.
| Material: | Malleable cast iron, electro-galvanised |
Approvals / Conformity
 | This product has been awarded the RAL quality mark "pipe supports" and is subject to continuous external monitoring according to RAL GZ-655. 2) Tested load values 'connection design' according to certificate 2010-07/2010-09. |
