Application

Element for easily and efficiently pre-assembling crossbars, wall brackets and support structures on site or in workshops.

Scope of delivery

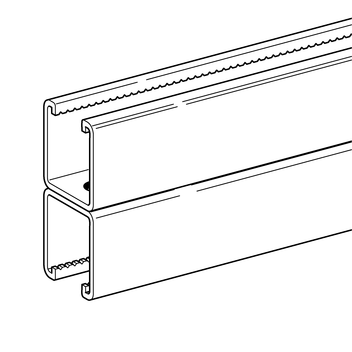

Double channels are joined together by clinching, guaranteeing corrosion protection at the joining.

Installation

If required, channels can be joined on site using:
Slot pattern II:
Hexagon socket bolt M8 x 16, with a max. spacing of 250 mm between connecting points one point at each end.
Slot pattern III and IV:
Clamping Unit KL (for details see product.

All Channels MS 41 are serrated on the inner edges and thus can be combined with many other Sikla products, e.g. Channel Nut, End Support WBD, Beam Clamp TCS 1. Particularly effective combinations are possible using other Pressix components. All 41-types except of 41/41/2.5 D can be used as guide and support channels by inserting Slide Block 41 inside the channel.

Technical Data

For further data, please refer to the following pages.

D = Double channel

Permissible load with centrical load application PDF | 85.1 KB Permissible load with two point loads PDF | 88.1 KB Permissible load with three point loads PDF | 82.0 KB Permissible load with distributed load PDF | 84.9 KB Slot pattern and measurements PDF | 107.5 KB

Load charts:

Channel MS 41 - Technical Data

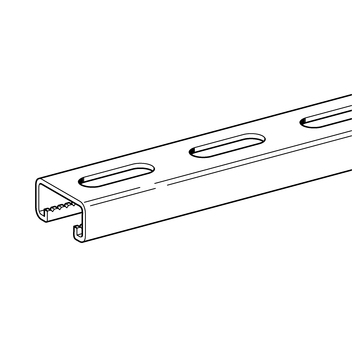

Channel MS 41/21/1.5
Channel MS 41/21/2.0
Channel MS 41/31/2.0
Channel MS 41/41/2.0

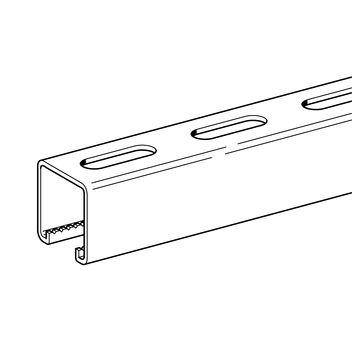

Channel MS 41/41/2.5
Channel MS 41/45/2.5
Channel MS 41/52/2.5
Channel MS 41/62/2.5
Channel MS 41-75/65/3.0

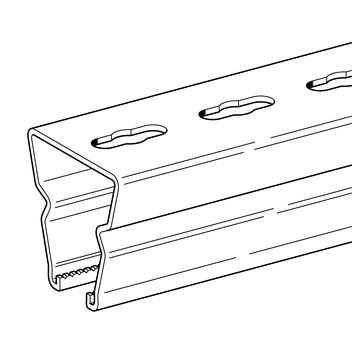

Channel MS 41-75/75/3.0

Approvals / Conformity

	This product has been awarded the RAL quality mark "Pipe Supports" and is subject to continuous external monitoring according to RAL GZ-655.

* = no RAL quality label
