Pressix CC 27 - Assembly System

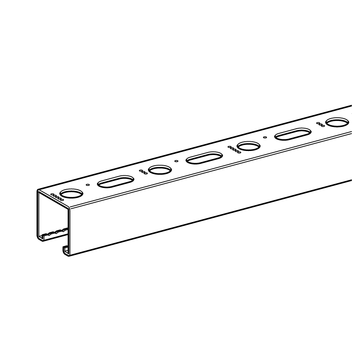

Channel MS 27 - 1,25
Application
Element for easily and efficiently pre-assembling crossbars, wall brackets and support structures on site or in workshops.
All products within the Pressix CC 27 range are compatible with Channel MS 27.
Installation
Fixation of the channel easily could be achieved using Nail Anchor PN and Screwbolt TSM-LPS.
Technical Data
| Material: | Steel 1.0350, pre-galvanised according to DIN EN 10346 |

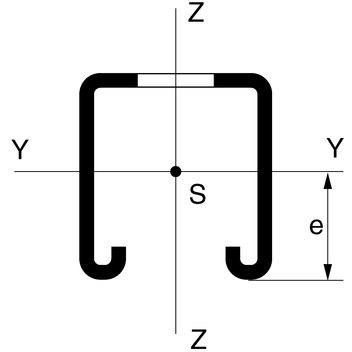

| Type B/H/s [mm] | Section modulus [cm3 ] | Moment of inertia [cm4 ] | Radius of gyration [cm] |
|---|---|---|---|
| 27/15/1.25 | Wy : 0.25 Wz : 0.64 | ly : 0.20 lz : 0.86 | iy : 0.54 iz : 1.13 |
| 27/25/1.25 | Wy : 0.55 Wz : 0.95 | ly : 0.72 lz : 1.28 | iy : 0.92 iz : 1.30 |
| 27/37/1.25 | Wy : 1.03 Wz : 1.31 | ly : 1.97 lz : 1.78 | iy : 1.27 iz : 1.21 |

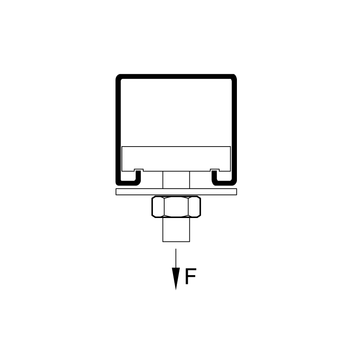

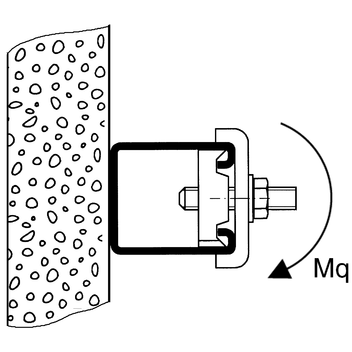

| Type B/H/s [mm] | Cross section A [cm2 ] | Distance e [cm] | Max. point carrying capacity Fmax (traction) [kN] | perm. torsional moment Mq [Nm] |
|---|---|---|---|---|
| 27/15/1.25 | 0.67 | 0.80 | 1.5 | 10 |
| 27/25/1.25 | 0.92 | 1.30 | 1.5 | 10 |
| 27/37/1.25 | 1.22 | 1.91 | 1.5 | 10 |
Note: All values refer to slotted channels.
Permissible load with centrical load application PDF | 85.1 KB Permissible load with two point loads PDF | 88.1 KB Permissible load with three point loads PDF | 82.0 KB Permissible load with distributed load PDF | 84.9 KB Slot pattern and measurements PDF | 107.5 KB
Load chart:
Channels MS 27/15, 27/25 and 27/37
Approvals / Conformity
 | This product has obtained the "RAL Gütezeichen Rohrbefestigung" and is subject to external surveillance according to RAL GZ-655. |
