Pressix CC 27 - Assembly System

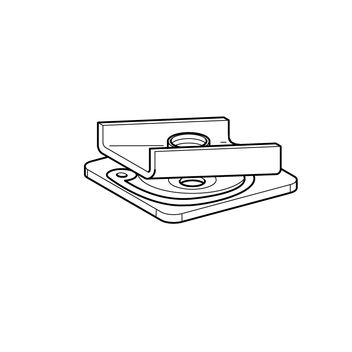

Block PB 27
![](/sixcms/media.php/443/thumbnails/2714_pressix_cc_federscheibe_2.tif.46761.png)
![](/sixcms/media.php/443/thumbnails/2760_gewindeplatte_cc27_m10_anw01.tif.46854.png)
Application
Quick-installation element for efficient mounting of pipe clamps and other components to Sikla Channels MS 27:
- Time-saving due to pre-assembled Block instead of 2 individual parts.
- Retains position in horizontal and vertical channels during locational adjustment. But can still be moved easily and freely along the channel as required.
- To be combined with Pressix Rods PNS, threaded rods, screws or other products with a thread connection.
Scope of delivery
Block completely pre-assembled.
Installation
Insert the Block into the channel; by turning to the right, the channel nut locks into the channel, then tighten up to 10 Nm - That's it!

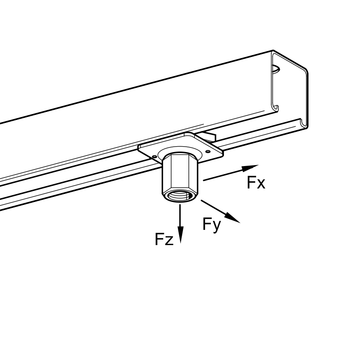

Technical Data
Fz = | 1.5 kN |
Fx = | 0.8 kN |
Material: | Steel, electro-galvanised |
