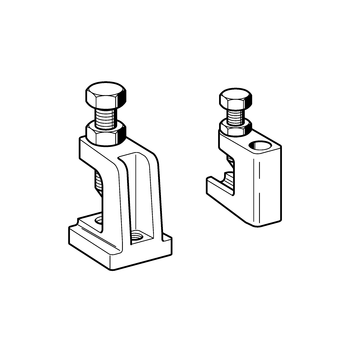

Beam Clamp TCS
Application
Heavy-duty connection element which, in combination with grub screws (M8 up to M16), are suitable for mounting pipes, ducts and equipments to steel beams (I-, T-, U-and angle steel beams).
- The combination with a Universal Joint provides for vertically aligned attachment to inclined beams.
- Can serve as single mounting element for installing crossbars and for fixing cantilever structures.
- Due to their special base profile, Beam Clamps TCS 1 can also be slid along and retained in the opening of Sikla Channels of the 41 series.
Scope of delivery
Pre-assembled with clamping bolt and locking nut.
Installation
Tighten the clamping bolt of the Beam Clamp first by hand, then tighten down with a spanner according to the mounting structures. The hardened point of the clamping bolt will penetrate the comparatively soft material of the beam, ensuring a solid and highly secure connection. Tighten the locking nut for securing the installation.
For installation near a cutting edge of a channel, an additional Holding Bracket HK 41 has to be mounted.
| Note: | Respect relevant mounting instructions! |
| | For FM-construction use thread ≥ M10 only! |
Technical Data
The nominal loads indicated apply to new Beam Clamps fixed to undamaged beam flanges only.

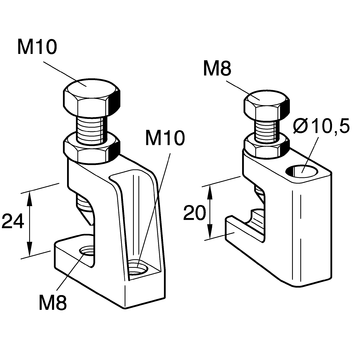

| Working load: | Type TCS 0: 3.5 kN |

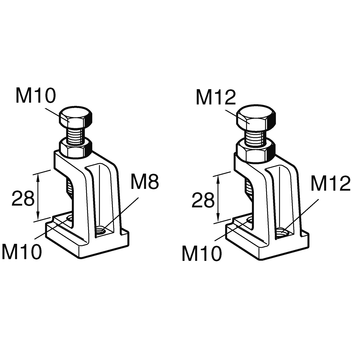

| Type TCS 1: 5.0 kN | |

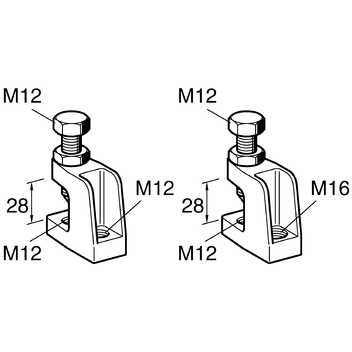

| Type TCS 2: 8.5 kN | |
| Material: | Body in cast-iron, electro-galvanised and clamping bolts in steel, class 8.8., electro-galvanised |
Approvals / Conformity
Approved and accepted by VdS and FM for use with stationary fire extinguishing systems.
TCS O LC Approval: G4950065 and G4950066 (erected mounting with M10 up to a maximum height hmax = 150 mm and up DN 50 only). For further types and different application fields: G4820023; G4830054; G4800039/ ...45; G4990027.
