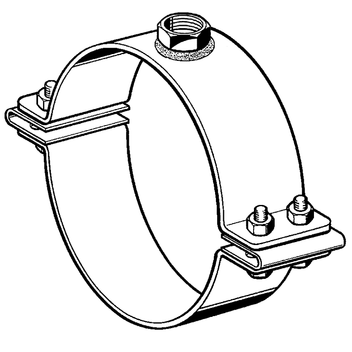

Fixed Point Clamp FS
Application

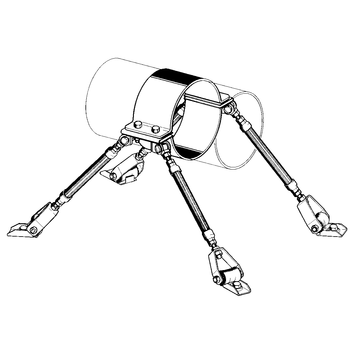

To be used for Fixed Point installations in combination with Mounting Kits.
For completion a Mounting Kit (with or without sound absorption) and 4 braces (Sikla threaded tubes or rods) are needed.
For professional dimensioning of these components according to fixed point loads (up to 25 kN with sound absorption or up to 35 kN without sound absorption) our staff members give advice.
The symetric construction enables absorption of axial loads in both directions. The centrically welded M16 nut offers further connection possibilities.
Scope of delivery
Complete with 4 clamping bolts and 4 nuts M16, from size 108 mm onwards with spring inserts.
Clamping bolts, nuts and spring inserts are pre-assembled and secured
against falling out.
Installation
Tighten clamping bolts equally with the torque M as mentioned in the table.
| Type | Tightening torque M (Nm) 1) |
| 1/2" ... 1 1/2" | 50 |
| 57 mm ... 3" | 80 |
| 108 mm ... 521 mm | 100 |
| 1) | Tightening torque for combination FP clamp with steel pipe DIN EN 10220 / normal wall thickness. For pipes with smaller wall thickness or other material, the values have to be reduced. |

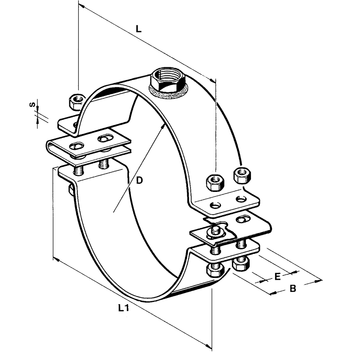

Technical Data
| Material: | Steel, all parts galvanised |
