Brackets
Fixing Bracket MW S
Application
Designed for general mounting purposes as a direct lateral attachment link integrated in binding and bridging beams of concrete or wood, and for similar applications. It may serve as a connecting bracket for framework structures consisting of channels.
Sprinkler systems: See "Technical Data". Types 60/30/90 and 90/60/90 are designed for attachment of pipes to wooden truss according to VdS CEA-standard 15.2.2.
Technical Data
| Type | Working load |
| 45/30/90° | 3.5 kN |
| 60/30/90° | 3.5 kN |
| 70/40/90° | 2.0 kN |
| 60/40/90° | 7.5 kN |
| 90/60/90° | 7.5 kN |
For Sprinkler systems: Application of 60/30/90 and 90/60/90 to wooden truss

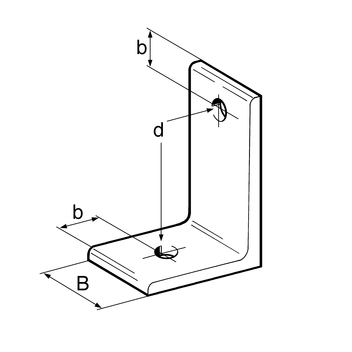

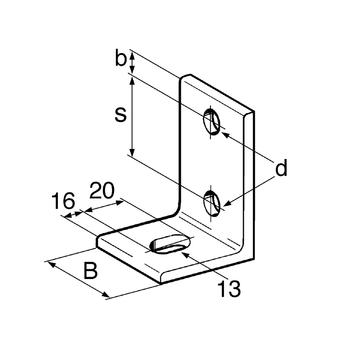

Single Bracket with wooden screw | Double Bracket with threaded bolt |
"d" depending on NB:
| | ≤ DN 50: | 2 x 6 mm |
| > DN 50 | ≤ DN 100: | 2 x 8 mm |
| > DN 100 | ≤ DN 150: | 2 x 10 mm |
| Material: | Angle steel profile, electro-galvanised |
